Beam

Mega Pointe

Case 2-way CMY Daylight DMX 3 pin DMX 5 pin Quick trigger clamp RJ45 TRUE1

Product information

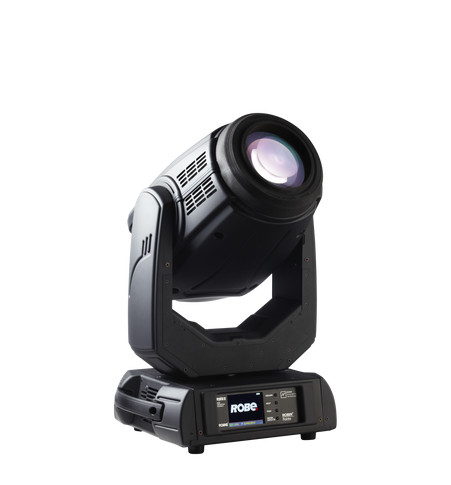

MEGA bright with MEGA features and still compact. The MegaPointe from Robe.

MegaPointe elevates the original all-in-one fixture to a whole new level. Unleash your creativity using the bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects.

The Robe R&D team worked with Osram to provide a 470W lamp that aligns perfectly with the cutting edge optical system. This design provides a brilliant, crystal clear, razor-edged beam, adjustable from a punchy 1.8 out to a wide 42 degree zoom.

Both static and rotating (glass) gobos produce precision in-air effects or projected images with a sharp, high-contrast, flat field.

The newly designed effects engine can produce 12 varying beam and ‘flower’ effects. The beam can also be shaped using innovative shutter emulation, further creating a whole new blend of content & creativity.


Details

Fixture: MegaPointe
Type: Beam
Manufacture: Robe
Source: Osram Sirius HRI 470 W RO
Colour mixing: CMY + 13 Color Wheel + Open
CRI: 80/90
Color temperature: 6300 K
Output: 20,375 lm
Zoom: 1.8°– 21° beam mode, 3°– 42° spot mode
Gobo: 9 + Open rotating gobo, 14 + Open static gobo
Gobo Size: Gobo: 15,9 mm Image: 12,5 mm
Special: CMY, animation wheel, 12 beam and flower effects, frost
DMX Channels: 34/ 39
DMX: 5-pin, 3-pin
Network: EtherCon RJ45
Network Protocols: ArtNet, MA Net, MA Net2, sACN
Power connection: Powercon True1
Power consumption: 670 W
IP-class: IP20
Weight: 22 kg
Colour: Black
